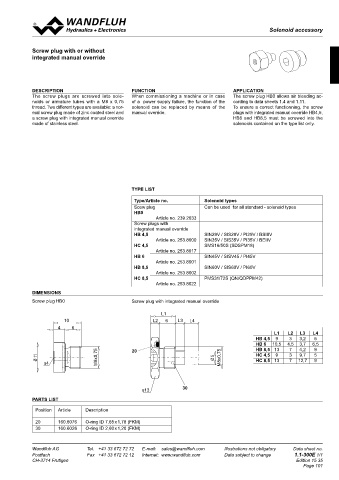

Solenoid accessory
                                                                                                Solenoid accessory

            Screw plug with or without
            integrated manual override





            DESCRIPTION                        FUNCTION                            APPLICATION
            The screw plugs are screwed into sole-   When commissioning a machine or in case   The screw plug HB0 allows air bleeding ac-
            noids  or armature tubes  with a M8 x 0,75   of a  power supply failure, the function of the   cording to data sheets 1.4 and 1.11.
            thread. Two different types are available: a nor-  solenoid can  be replaced by  means  of the   To ensure a correct functionning, the screw
            mal screw plug made of zinc coated steel and   manual override.        plugs with integrated manual override HB4,5,
            a screw plug with integrated manual override                           HB6 and HB8,5 must be screwed into the
            made of stainless steel.                                               solenoids contained on the type list only.













                                               TyPE LIST
                                                Type/Article no.         Solenoid types
                                                Scew plug                Can be used  for all standard - solenoid types
                                                HB0
                                                        Article no. 239.2033
                                                Screw plugs with
                                                integrated manual override
                                                HB 4,5                   SIN29V / SIS29V / PI29V / BSIIIV
                                                        Article no. 253.8000   SIN35V / SIS35V / PI35V / BEIIV
                                                HC 4,5    10             SMS16/50S (SDSPM18)
                                                        4 Article no. 253.8017
                                                             6
                                                HB 6                     SIN45V / SISV45 / PI45V
                                                        Article no. 253.8001
                                                HB 8,5                   SIN60V / SIS60V / PI60V
                                                        Article no. 253.8002
                                                HC 8,5                   PMS31/72S (QN/QDPPM42)
                                                  Ø 11  Article no. 253.8022 M8x0,75
                                                   s4
            DIMENSIONS
            Screw plug HB0                     Screw plug with integrated manual override

                                                          L1
                        10                             L2  6   L3   L4
                     4    6
                                                                                                 L1   L2   L3   L4
                                                                                           HB 4,5  9   3   3,2   5
                                                                                           HB 6   10,5   4,5  3,7   6,5
                                                                                                               9
                                                                                                       7
                                                                                                          4,2
                                                                                           HB 8,5  13
                                               20
                                                                                                          9,7
              Ø 11                 M8x0,75                                  Ø 5  M8x0,75   HC 4,5  9   3   12,7   5 9
                                                                                           HC 8,5  13
                                                                                                       7
                s4
                       L1                          s13           30
                    L2   6   L3  L4
            PARTS LIST
             Position   Article   Description

             20      160.6076   O-ring ID 7,65 x 1,78 (FKM)
             20      160.6026   O-ring ID 2,60 x 1,20 (FKM)
             30
                                          Ø 5  M8x0,75

            Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
            Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-300E 1/1
            CH-3714 Frutigen                                                                             Edition 15 35
                 s13           30                                                                           Page 101
