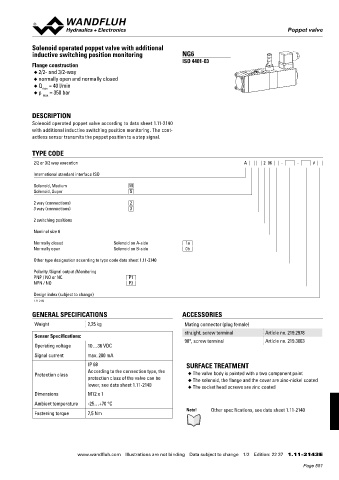

Poppet valve
Poppet valve

Solenoid operated poppet valve with additional
inductive switching position monitoring NG6
ISO 4401-03
Flange construction
◆ 2/2- and 3/2-way
◆ normally open and normally closed
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION
Solenoid operated poppet valve according to data sheet 1.11-2140
with additional inductive switching position monitoring. The cont-
actless sensor transmits the poppet position to a step signal.

TYPE CODE
2/2 or 3/2 way execution A 2 06 - - #

International standard interface ISO
Solenoid, Medium M
Solenoid, Super S

2 way (connections) 2
3 way (connections) 3

2 switching positions
Nominal size 6

Normally closed Solenoid on A-side 1a
Normally open Solenoid on B-side 0b
Other type designation according to type code data sheet 1.11-2140

Polarity /Signal output /Monitoring
PNP / NO or NC P1
NPN / NO P2

Design index (subject to change)
1.11-2142
GENERAL SPECIFICATIONS ACCESSORIES
Weight 2,25 kg Mating connector (plug female)
straight, screw terminal Article no. 219.2978
Sensor Specifications:
90°, screw terminal Article no. 219.3003
Operating voltage 10…36 VDC
Signal current max. 200 mA
IP 68 SURFACE TREATMENT
According to the connection type, the
Protection class ◆ The valve body is painted with a two component paint
protection class of the valve can be ◆ The solenoid, the flange and the cover are zinc-nickel coated
lower, see data sheet 1.11-2140
◆ The socket head screws are zinc coated
Dimensions M12 x 1
Ambient temperature -25…+70 °C
Note! Other specifications, see data sheet 1.11-2140
Fastening torque 7,5 Nm
