Proportional flow control valve Proportional flow control valve
Proportional flow control valve

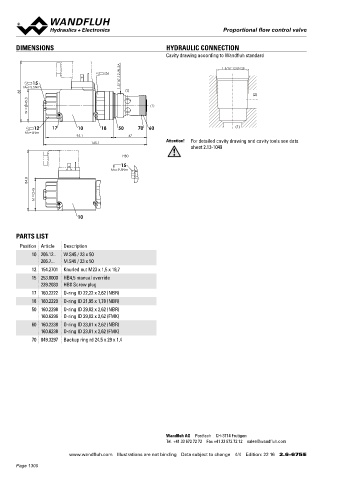

DIMENSIONS HYDRAULIC CONNECTION Proportional 2-way flow control cartridge
Cavity drawing according to Wandfluh standard ◆ direct operated M42 x 2
◆ Q = 170 l/min ISO 7789
max
s36 1-5/16"-12UN-2A 1-5/16"-12 UN-2B ◆ Q N max = 160 l/min
p
= 350 bar
◆
15 max
85 MD=5.5Nm (2) (2)
45.3
(1)
W = DESCRIPTION APPLICATION
Direct operated, pressure compensated proportional flow control Proportional flow control valves are suitable for precise speed
12 17 10 18 50 70 60 (1) valve in screw-in cartridge construction for cavity according to ISO control, where the load current has to be maintained constant inde -
MD=5Nm 7789. With the solenoid deenergised, the control spool is held in the pendent of the input and output pressure. The screw-in cartridge is
95.1 47 closed position by a spring. The change of the electric current is perfectly suitable for installation in control blocks. For machining
145.1 Attention! For detailed cavity drawing and cavity tools see data
sheet 2.13-1049 followed by a proportional volume flow change. From the input (1), the cartridge cavity in steel and aluminum blocks, cavity tools are
the fluid flows over the control and throttling spool to the controlled available (hire or purchase). Please refer to the data sheets in
HB0

output (2). For the control, Wandfluh proportional amplifiers are register 2.13.
15 available (see register 1.13).

MD= 9.5Nm
84.8
45
M =

10 TYPE CODE
Q N P PM42 - - / - #
Flow control valve
PARTS LIST
Normally closed
Position Article Description
10 206.12.. W.S45 / 23 x 50 Proportional
206.7... M.S45 / 23 x 50
Screw-in cartridge M42 x 2
12 154.2701 Knurled nut M23 x 1,5 x 19,7
15 253.8000 HB4,5 manual override Nominal volume flow rate Q 100 l/min 100
N
239.2033 HB0 Screw plug 160 l/min 160
17 160.2222 O-ring ID 22,22 x 2,62 (NBR) Nominal voltage U N 12 VDC G12
18 160.2220 O-ring ID 21,95 x 1,78 (NBR) 24 VDC G24
without coil X5
50 160.2298 O-ring ID 29,82 x 2,62 (NBR)
160.6296 O-ring ID 29,82 x 2,62 (FMK) Slip-on coil Metal housing round W
60 160.2238 O-ring ID 23,81 x 2,62 (NBR) Metal housing square M
160.6238 O-ring ID 23,81 x 2,62 (FMK)
Connection execution Connector socket EN 175301-803/ISO 4400 D
70 049.3297 Backup ring rd 24,5 x 29 x 1,4 Connector socket AMP Junior - Timer J
Connector Deutsch DT04-2P G

Sealing material NBR
FKM (Viton) D1
Manual override HC8,5
HB0
Design index (subject to change)
2.6-690

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 4/4 Edition: 22 16 2.6-675 E www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 20 36 2.6-690 E
