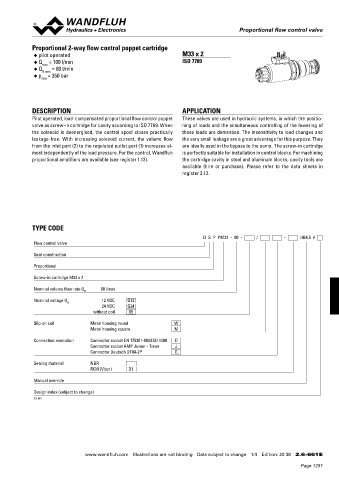

Page 1281 - Softbound_Edition_19_en

Proportional flow control valve
Proportional flow control valve

Proportional 2-way flow control poppet cartridge
◆ pilot operated M33 x 2
◆ Q = 100 l/min ISO 7789
max
◆ Q N max = 80 l/min
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Pilot operated, load-compensated proportional flow control poppet These valves are used in hydraulic systems, in which the positio-
valve as screw-in cartridge for cavity according to ISO 7789. When ning of loads and the simultaneous controlling of the lowering of
the solenoid is deenergised, the control spool closes practically these loads are demanded. The insensitivity to load changes and
leakage-free. With increasing solenoid current, the volume flow the very small leakage are a great advantage for this purpose. They
from the inlet port (2) to the regulated outlet port (1) increases al- are ideally used in the bypass to the pump. The screw-in cartridge
most independently of the load pressure. For the control, Wandfluh is perfectly suitable for installation in control blocks. For machining
proportional amplifiers are available (see register 1.13). the cartridge cavity in steel and aluminum blocks, cavity tools are

available (hire or purchase). Please refer to the data sheets in
register 2.13.

TYPE CODE
Q S P PM33 - 80 - / - HB4,5 #
Flow control valve
Seat construction

Proportional
Screw-in cartridge M33 x 2

Nominal volume flow rate Q 80 l/min
N
Nominal voltage U N 12 VDC G12
24 VDC G24
without coil X5
Slip-on coil Metal housing round W
Metal housing square M
Connection execution Connector socket EN 175301-803/ISO 4400 D
Connector socket AMP Junior - Timer J
Connector Deutsch DT04-2P G

Sealing material NBR
FKM (Viton) D1

Manual override
Design index (subject to change)
2.6-661

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 20 38 2.6-661 E
